380V Electric Induction Heat Treatment Machine 160kw 50L/Min Cooling

160kw High Frequency induction heating forging equipment

1. Brief introduction of steel bar / steel plate induction heating machine:

High-frequency induction heating equipment, also known as high-frequency heating machine, high-frequency induction heating machine, called "high-frequency induction heating power supply" or "high-frequency power supply" in China, also called high-frequency induction heating machine in Guangdong and Taiwan, according to the workpiece Different from the application field, it is also called medium frequency induction heating equipment and super audio frequency induction heating equipment.
It is mainly used for inductive heating of metals (non-contact); the inverter elements used generally use thyristors, vacuum tubes, etc.; the technology of using thyristors as inverter elements is very mature, and the power can be To hundreds of KW or more, but the frequency is generally below 10KHZ.
When the vacuum tube is used as the inverter element, the frequency and power can be very high, but the power consumption is too large and it is easy to be damaged. IGBT and MOS tube are a new component in the high frequency industry, which can replace thyristor and vacuum tube respectively.

2. Feature of IGBT steel bar / steel plate induction heating machine:

1. It adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.

3. Applications of IGBT steel bar / steel plate induction heating machine:

(1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum, etc. heating.

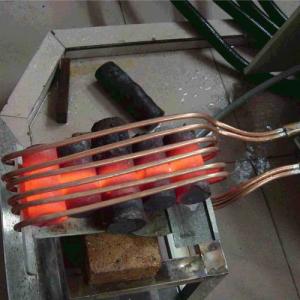

(2) Forging: Whole and partial induction forging for metal bar.

(3) Workpiece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.

(4) Specific application for the induction forging heater: bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long / round / square / angle bar and billet heating, etc.

4. Technical Parameters of LSW-160 IGBT steel bar / steel plate induction heating machine:

380V Electric Induction Heat Treatment Machine

Induction Heat Treatment Machine 160kw

50L/Min Cooling Induction Heating Machine

380V Electric Induction Heat Treatment Machine 160kw 50L/Min Cooling Images
